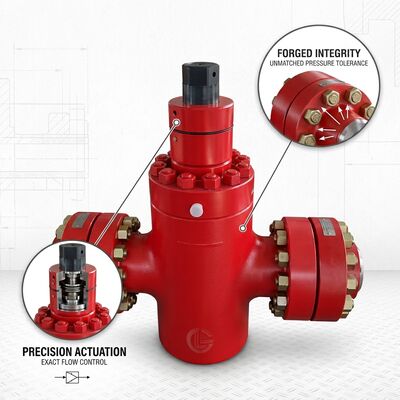

API 598 Standard Gate Valve Engineered for Petrochemical Industry Offering Superior Sealing and Operational Reliability

Product Description:

The High Pressure Gate Valve is an essential component designed for demanding applications in the Oil & Gas and Petrochemical industries. Engineered to provide reliable performance under high-pressure conditions, this Gate Valve offers exceptional durability and operational efficiency. Its robust construction and precise engineering make it an ideal choice for controlling the flow of liquids and gases in critical pipeline systems.

One of the standout features of this High Pressure Gate Valve is its vibrant red color, which not only enhances visibility but also signifies safety and compliance with industry standards. The red finish ensures that the valve can be easily identified within complex piping networks, facilitating maintenance and operational inspections. This color coding is particularly useful in large-scale industrial environments where quick identification of components is crucial.

Designed with a welded body type, the valve ensures maximum strength and leak-proof performance. The welded body construction minimizes the risk of leaks and structural failures, making it highly reliable in high-pressure settings. This design choice also enhances the valve’s resistance to wear and tear, extending the service life and reducing the need for frequent replacements or repairs.

The connection type of this Gate Valve is flanged, which provides a secure and easy method of installation and removal. Flanged connections are widely preferred in industrial applications due to their ability to withstand high pressures and temperatures while facilitating maintenance activities. The flanged ends allow for a tight seal and robust mechanical connection to the pipeline, ensuring that the valve maintains integrity under strenuous operating conditions.

Operating within a temperature range of 75°F to 350°F, this Gate Valve is well-suited for a variety of thermal environments encountered in Oil & Gas and Petrochemical processes. Whether dealing with moderately heated fluids or gases, the valve maintains its performance without compromising safety or efficiency. The ability to function effectively across this temperature spectrum makes it versatile for numerous applications, including those involving steam, hydrocarbons, and other industrial fluids.

The High Pressure Gate Valve is meticulously designed to provide smooth and precise control of flow. Its gate mechanism allows for full bore flow when fully open, minimizing pressure drop and ensuring efficient pipeline operation. When closed, the gate provides a tight seal that prevents leakage, which is critical in high-pressure systems to avoid hazardous spills and maintain process integrity.

In addition to its mechanical advantages, this Gate Valve is built to meet stringent industry standards and certifications, ensuring that it complies with safety, environmental, and quality regulations. Its robust construction and reliable sealing capabilities make it an indispensable asset in pipelines where safety and operational continuity are paramount.

Overall, the High Pressure Gate Valve combines a welded body design, flanged connection, and a wide working temperature range with a striking red color for easy identification. It is specifically tailored for the challenging demands of the Oil & Gas and Petrochemical sectors, delivering dependable performance, ease of maintenance, and long-term durability. Whether you require a valve for controlling crude oil, natural gas, or petrochemical products, this Gate Valve stands out as a high-quality, efficient solution engineered to meet your operational needs.

Features:

• Product Name: High Pressure Gate Valve
• Temperature Range: -29°C to 425°C
• Working Temperature: 75°F to 350°F
• Connection Type: Flanged
• Processing Type: Forging
• Body Type: Welded Body
• Designed for high pressure applications
• Durable and reliable Gate Valve performance
• Suitable for various industrial uses requiring a High Pressure Gate Valve

Technical Parameters:

Applications:

The High Pressure Gate Valve is designed to provide reliable performance in a variety of demanding industrial applications. With a working temperature range of 75°F to 350°F, this Gate Valve is suitable for use in environments where temperature fluctuations are common, ensuring consistent operation and durability. Its robust construction from material classes AA to HH offers enhanced resistance to corrosion and wear, making it ideal for handling high-pressure fluids in harsh conditions.

This Gate Valve can be operated manually or through an electric actuator, providing flexibility depending on the operational requirements. Manual operation is suitable for applications where precise control is needed or where automation is not feasible. In contrast, the electric actuator option allows for remote control and automated valve management, improving efficiency and safety in large-scale or hazardous environments.

The Gate Valve features flanged connections, which ensure secure and leak-proof installation in pipeline systems. Flanged connections also facilitate easy maintenance and replacement, reducing downtime during servicing. The valve’s design complies with the API 598 testing standard, guaranteeing that it meets rigorous quality and performance criteria. This compliance assures users of the valve’s reliability in sealing and pressure containment.

Typical application occasions for the High Pressure Gate Valve include oil and gas pipelines, chemical processing plants, power generation facilities, and water treatment systems. In these scenarios, the valve is used to start or stop the flow of liquids, isolate sections of the pipeline for maintenance, or regulate flow under high-pressure conditions. Its ability to handle a wide temperature range and high pressure makes it suitable for both upstream and downstream operations.

Additionally, this Gate Valve is commonly employed in industrial manufacturing processes where precise flow control is critical. It can be found in steam lines, cooling water circuits, and other fluid transport systems requiring dependable shut-off capabilities. The valve’s durability and compliance with industry standards make it an essential component in ensuring operational safety and efficiency across various sectors.

Customization:

Our High Pressure Gate Valve offers exceptional performance and reliability, specifically designed for demanding applications in the Oil & Gas and Petrochemical industries. Engineered to operate efficiently within a working temperature range of 75°F to 350°F, this valve ensures durability and safety under high-pressure conditions.

Featuring a full bore flow characteristic, the High Pressure Gate Valve provides minimal flow resistance, allowing for maximum flow capacity and reduced pressure drop. The valve is equipped with a flanged connection type, facilitating secure installation and easy maintenance in complex piping systems.

To guarantee leak-tight sealing, the High Pressure Gate Valve utilizes a high-quality PTFE seal material, ensuring excellent chemical resistance and longevity. Our product customization services allow you to tailor the High Pressure Gate Valve to meet your specific operational requirements, ensuring optimal performance in your critical applications.

Support and Services:

Our High Pressure Gate Valve is designed to provide reliable performance and durability in demanding industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, maintenance tips, and operational queries to ensure optimal valve performance.

We offer comprehensive product services including routine maintenance, inspection, repair, and replacement parts to extend the service life of your High Pressure Gate Valve. Our support ensures compliance with industry standards and helps prevent unexpected downtime.

For detailed technical documentation, installation manuals, and maintenance instructions, please refer to the product literature provided with your valve or visit our official website. Our resources are regularly updated to incorporate the latest industry practices and technological advancements.

We are committed to providing exceptional customer service and technical assistance to meet your operational needs effectively. Whether you require on-site support or remote consultation, our team is ready to help you maximize the performance and reliability of your High Pressure Gate Valve.

FAQ:

Q1: What materials are used to manufacture the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is typically made from high-grade stainless steel or carbon steel, ensuring durability and resistance to corrosion under high pressure conditions.

Q2: What pressure ratings does the High Pressure Gate Valve support?

A2: This valve is designed to handle pressures up to 6000 PSI, making it suitable for demanding industrial applications.

Q3: What sizes are available for the High Pressure Gate Valve?

A3: The valve is available in a range of sizes from 1/2 inch to 12 inches to accommodate various pipeline requirements.

Q4: Is the High Pressure Gate Valve suitable for both liquid and gas applications?

A4: Yes, the valve is engineered to operate efficiently in both liquid and gas flow systems, providing reliable shutoff and flow control.

Q5: How is the High Pressure Gate Valve operated?

A5: The valve features a handwheel or gearbox operation, allowing for easy opening and closing even under high pressure conditions.
